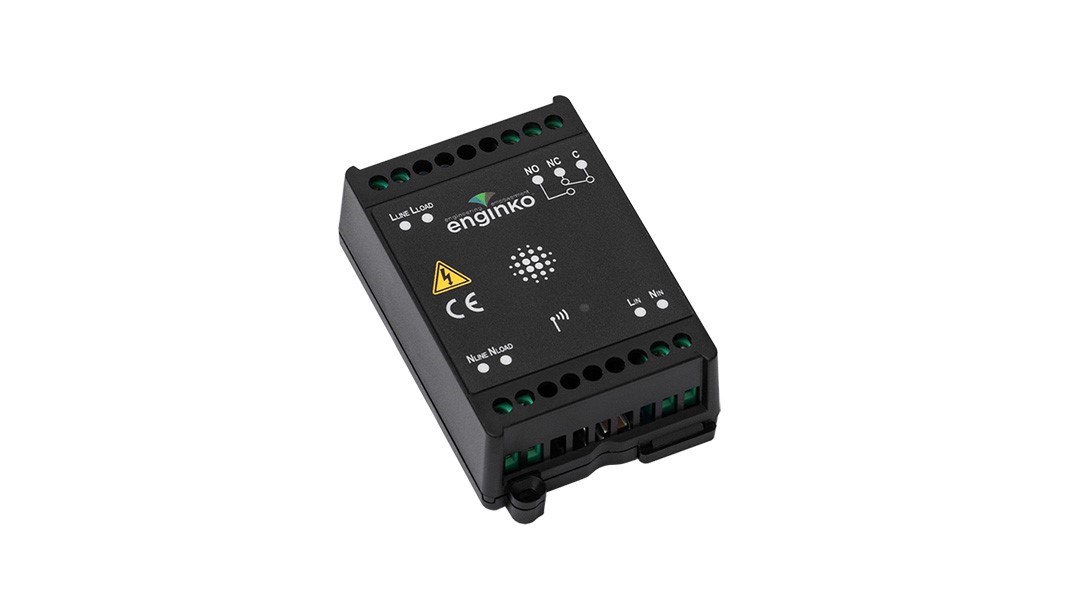

This compact metering can be used for monitoring and checking the power of electronic devices, and can remotely switch devices on/off and read the state of a digital input.
- CPU Cortex M0+
- Flash 64 KB
- Class C LoRaWAN stack EU868, AS923, AU915, US915
- Metering of a 230 V AC – 16 Amp Load (active, reactive and apparent energy, Class 0.2)
- Instantaneous reading of active, reactive and apparent power, voltage and current
- 1 opto-isolated input, capability 230 V AC
- 1 relay output with COM, NO, NC contacts carrying 8 Amp@230Vac
- NFC for IoT node setup, FW upgrade and data reading
- Power supply from line
- Storage temperature range -20 + 80 C°
- Working temperature range -10 + 70 C°
Product Specification
