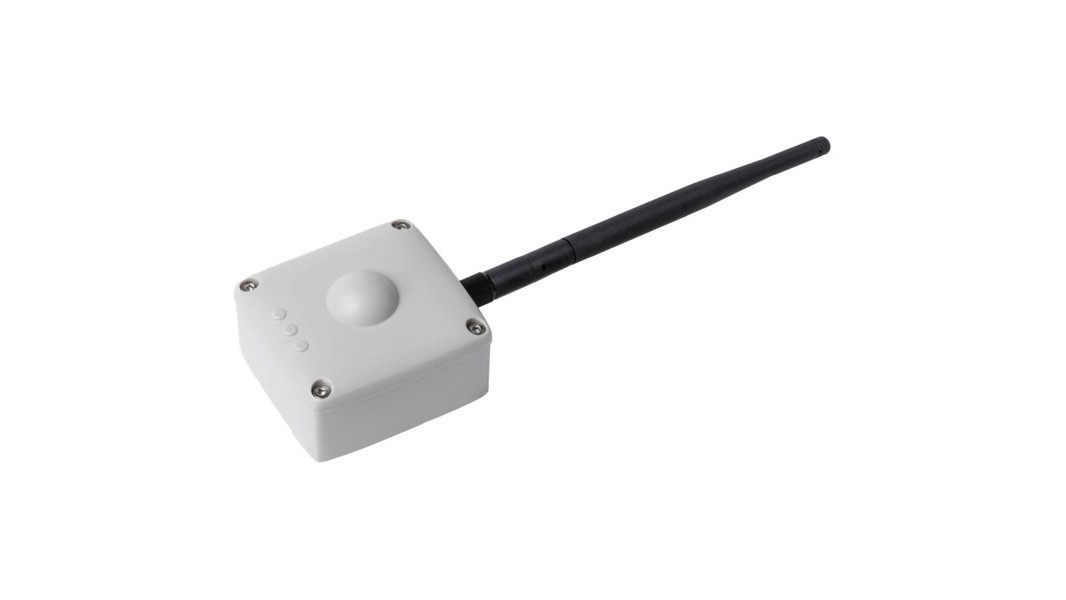

This device is able to measure the filling level of waste containers, from urban bin to containers for separate waste collection. The battery life, low cost, small size and robust construction make it the ultimate sensor in different situations. Suitable for use on containers of different shapes and sizes and to work with waste of different origins (plastic, paper, glass, organic). Equipped with Bluetooth, it allows configuration and diagnostics even with the sensor mounted in hard to reach locations. The device comes with an external antenna for better reception.
- CPU ARM Cortex M4
- Class A LoRaWAN 1.0.2, EU868
- OTAA/ABP activation
- Level range 140 ÷ 1500 mm, resolution 1 mm
- External antenna
- Magnetic start-up
- Embedded accelerometer for tilt status**
- Primary battery with no harmful substances, replacement possible
- 5 years life time with SF12 and max Tx power, 48 Uplinks messages per day
- Transmission @ 868 MHZ, 14 dBm max.
- Remote configuration**
- Storage temperature -30 °C ÷ +80 °C
- Working temperature -30 °C ÷ +65 °C
** planned
