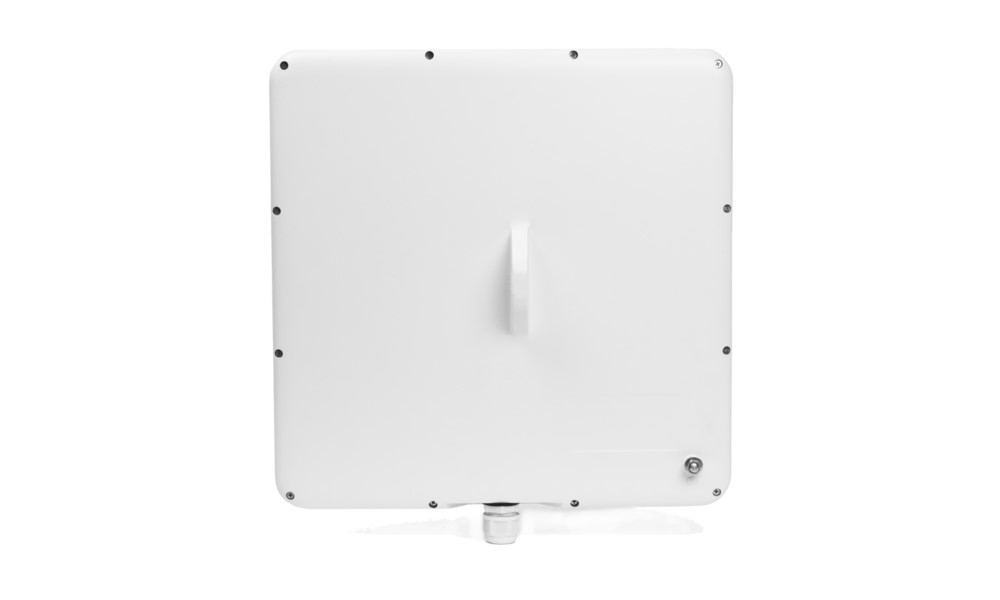

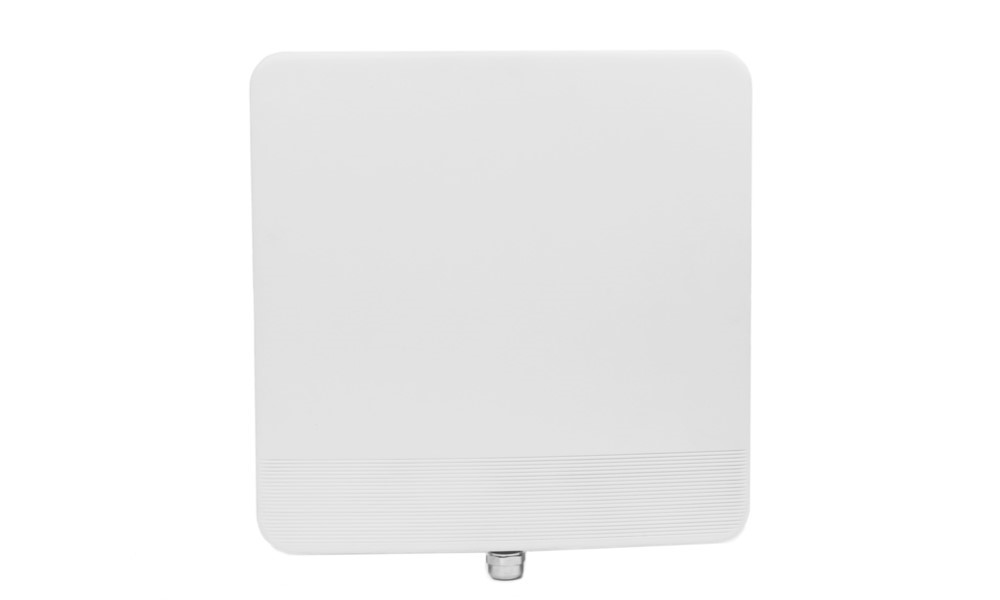

Outdoor radio unit Radwin 2000 Alpha Integrated

  • Device type: outdoor radio unit
  • Vendor: Radwin
  • Topology: point-to-point or point-to-multipoint
  • Capacity: 50/250/500 Mb/s aggregated
  • Unit type: end unit
  • Frequency bands: 5.4 - 5.8 GHz
  • Bandwidth: 10/20/40/80 MHz
  • Modulation: MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
  • Adaptive modulation and coding: podržano
  • Tx power: up to 26 dBm
  • Range: up to 40 km
  • Ethernet: 1 x 10/100/1000 Mb/s, RJ45
  • Power supply: Radwin PoE adapter
  • Dimensions: 32.5 x 32.5 x 6.4 cm
  • Weight: 2 kg
  • Operating temperature: -35 °C to 60 °C
  • IP protection: IP67
  • Antenna type: integrated
  • Antenna gain: 21 dBi
  • Polarization: dual
  • VSWR: 2:1
  • Azimuth beamwidth: 10 °

Product Specification - 50 Mb/s

Product Specification - 500 Mb/s
