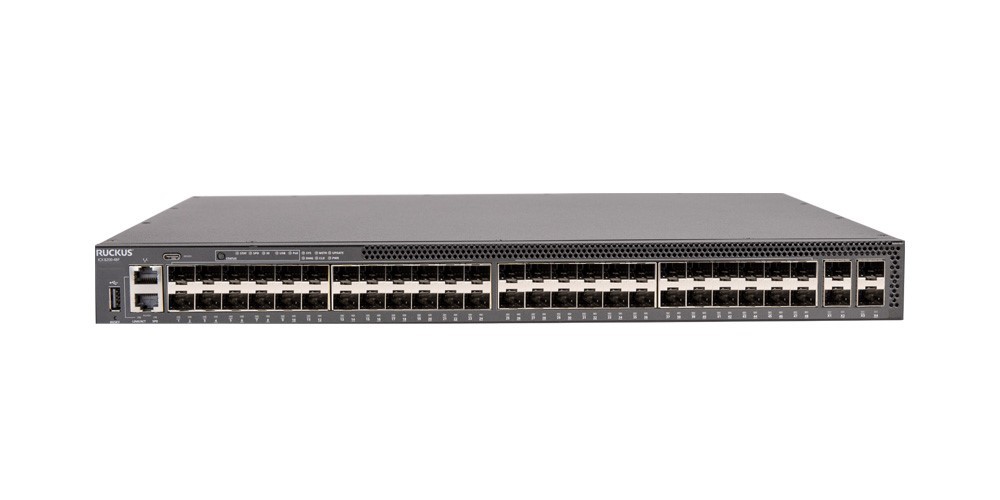

Switch Ruckus ICX 8200-48F

  • Device type: switch
  • Vendor: Commscope
  • Number of downlink ports: 48 (SFP)
  • Number of uplink ports: 4 (SFP/SFP+/SFP28)
  • Switching capacity: 296 Gbit/s
  • Forwarding capacity: 219 Mp/s
  • Number of 10/100/1000 Mbit/s RJ45 downlink ports: -
  • Number of 100/1000/2500 Mbps RJ45 downlink ports: -
  • Modular slots: -
  • Number of 10/100/1000 Mbps RJ45 uplink ports: -
  • Number of 1 Gbps SFP ports: 48
  • Number of 1/10/25 Gbps SFP/SFP+/SFP28 uplink (stacking) ports: 4
  • Number of 40 Gbps ports: -
  • Number of 100 Gbps ports: -
  • Number of PoE/PoE+ ports: -
  • Number of PoE/PoE+/PoH+ ports: -
  • Maximum PoE+ Class 3 ports (15.4 W per port): -
  • Maximum PoE+ Class 4 ports (30 W per port): -
  • Maximum PoE++ Class 6 ports (60 W per ports): -
  • Basic L3 routing (static routing, RIP): Yes
  • Advanced L3 routing (OSPF, VRRP, PIM, PBR features): With license
  • PoE budget: -
  • Net weight (kg): 4.30
  • Dimensions W x D x H (mm): 440 x 280 x 44
