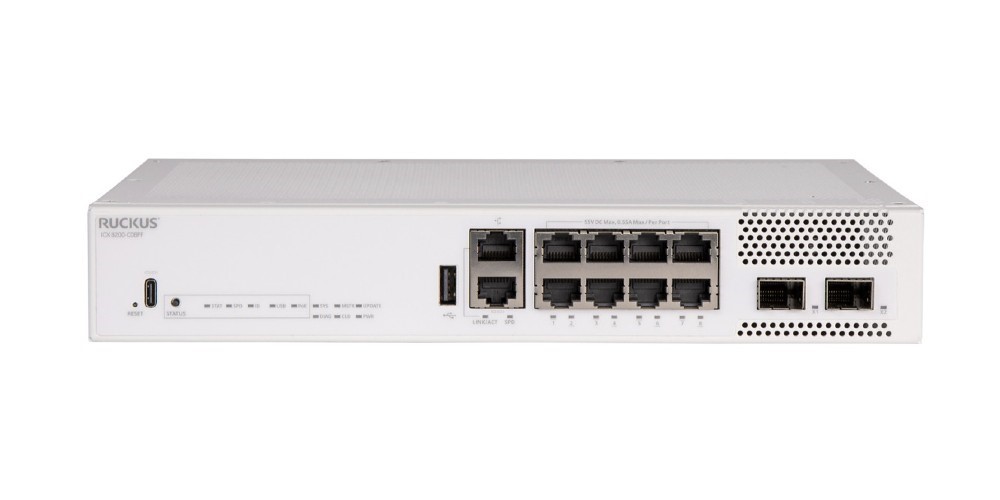

Switch Ruckus ICX 8200-C08PF

  • Device type: switch
  • Vendor: Commscope
  • Number of downlink ports: 8 (RJ45)
  • Number of uplink ports: 2 (SFP/SFP+)
  • Switching capacity: 56 Gbit/s
  • Forwarding capacity: 42 Mp/s
  • Number of 10/100/1000 Mbit/s RJ45 downlink ports: 8
  • Number of 100/1000 Mbps/2.5 Gbps RJ45 downlink ports: -
  • Modular slots: -
  • Number of 10/100/1000 Mbps RJ45 uplink ports: -
  • Number of 1/10 Gbps SFP/SFP+ uplink (stacking) ports: 2
  • Number of 40 Gbps ports: -
  • Number of 100 Gbps ports: -
  • Number of PoE/PoE+ ports: 8
  • Number of PoE/PoE+/PoH+ ports: -
  • Maximum PoE+ Class 3 ports (15.4 W per port): 8
  • Maximum PoE+ Class 4 ports (30 W per port): 4
  • Basic L3 routing (static routing, RIP): Yes
  • Advanced L3 routing (OSPF, VRRP, PIM, PBR features): With license
  • PoE budget: 124 W
  • Net weight (kg): 2.27
  • Dimensions W x D x H (mm): 270 x 214 x 44
